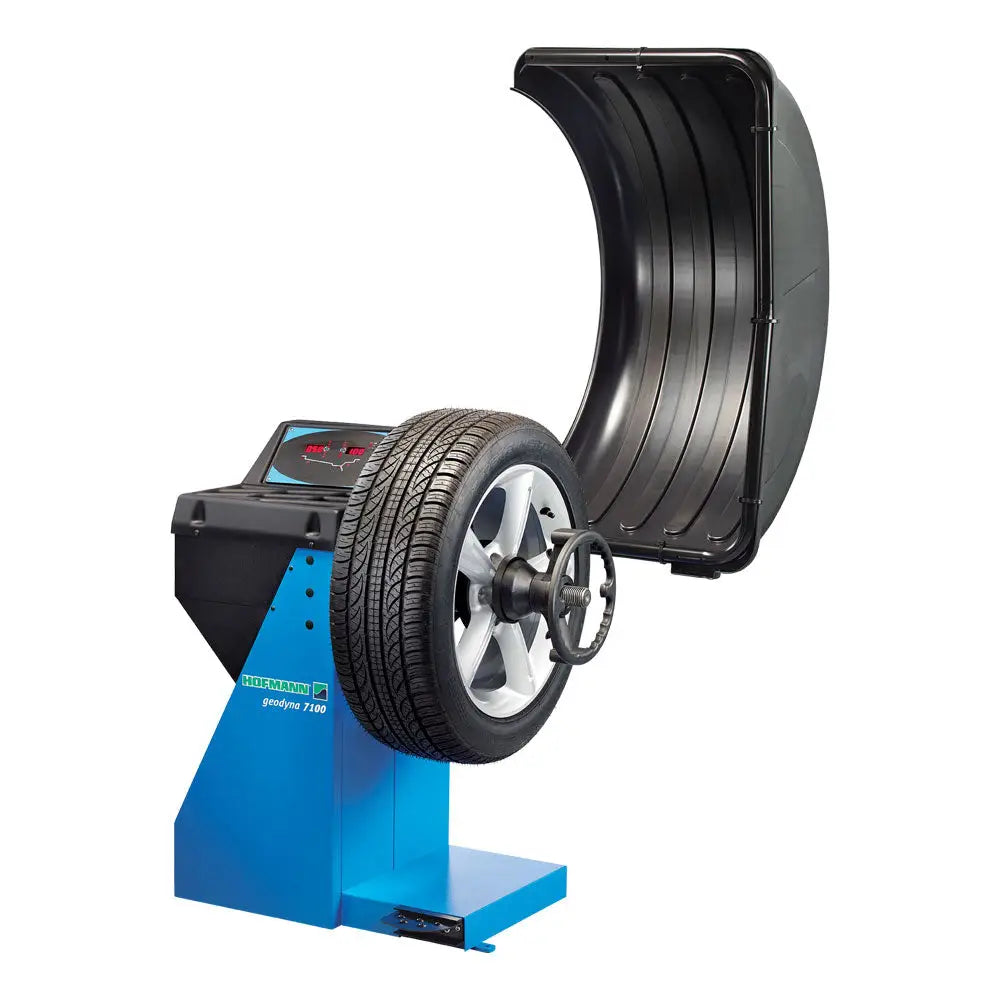

Hofmann Geodyna 7100 Wheel Balancer for Cars & Light Trucks - Professional Wheel Balancing Machine for Auto Shops & Tire Service Centers

Hofmann Geodyna 7100 Wheel Balancer for Cars & Light Trucks - Professional Wheel Balancing Machine for Auto Shops & Tire Service Centers

$2337.5 $4250 -45%

Free shipping on all orders over $50

7-15 days international

16 people viewing this product right now!

30-day free returns

Secure checkout

60507962

Guranteed safe checkout

The Geodyna 7100 is a reliable balancer with a space-saving footprint. With its user-friendly 2D SAPE data entry and VPM measurement system, this balancer is an accurate and easy-to-use choice for cars and light trucks.

EZ-Collets - With this app, you can select a vehicle to find and compare options for the wheel's best collet, flange, or quick plate. You can also get information about the tire and rim of the vehicle. The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

Features:

Small footprint

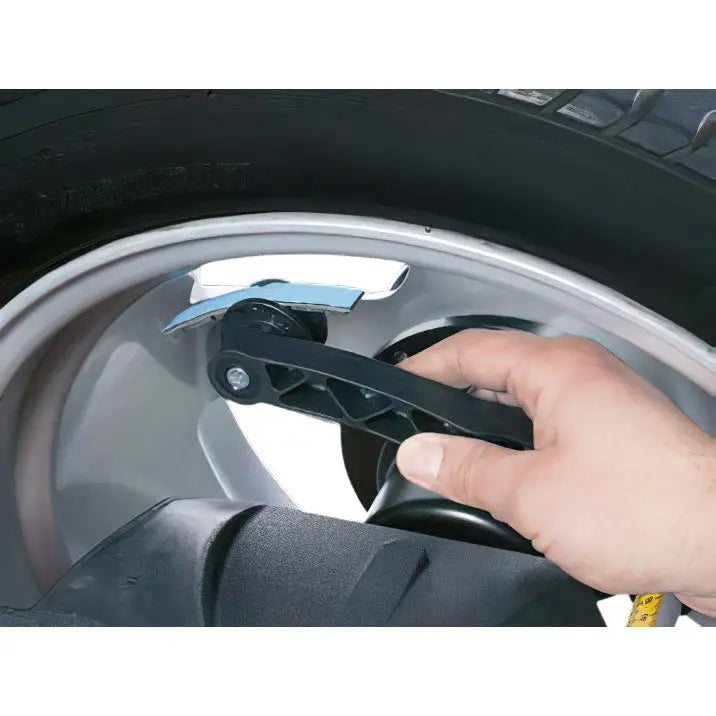

Semi-automatic input of offset and rim diameter via 2D SAPE
Manual input of rim width
Conspicuous and intuitive LED display

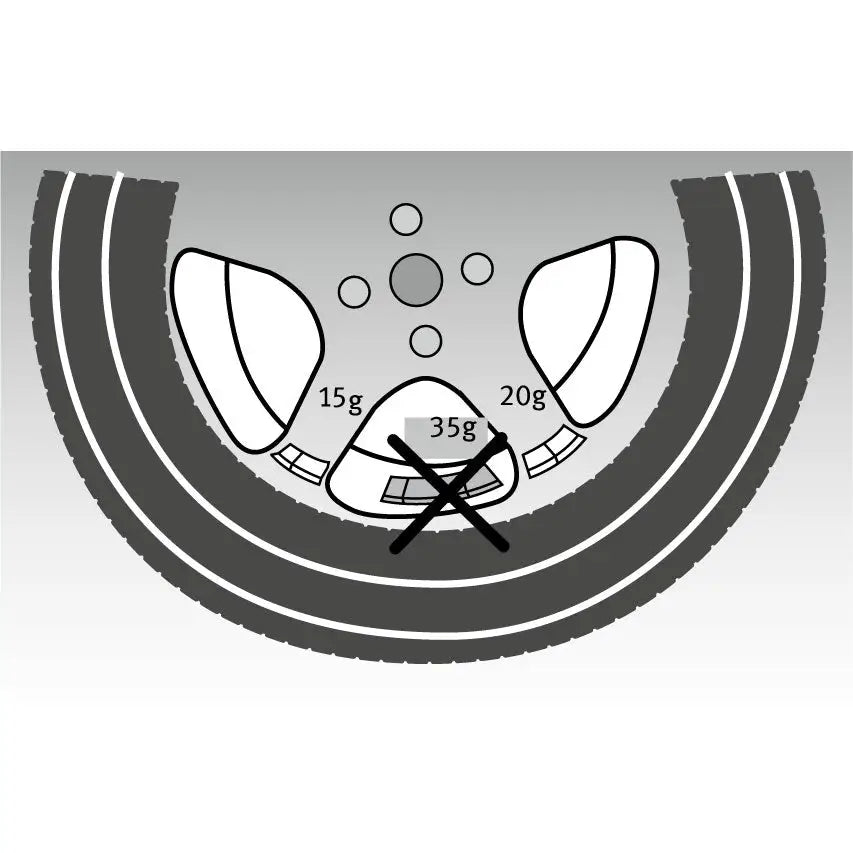

Imbalance minimization and optimization programs
VPI measurement technique for uncompromised accuracy
QuickBal for reduced measurement time: Short start-stop cycle time: 6.5 seconds (15" rim)
Measuring speed < 100 rpm

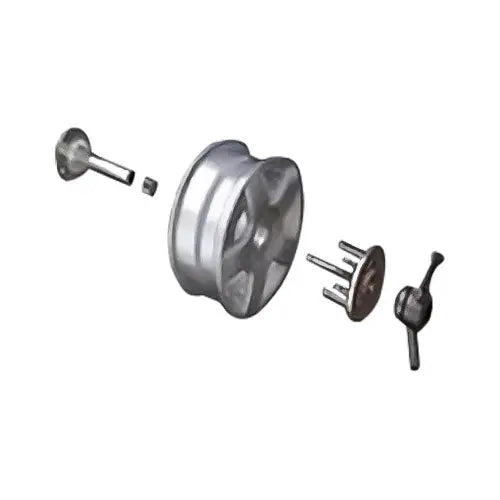

Clamping of the wheel on integrated flange with quick nut

Specs:

Part number: EEWB761A230
Vehicles supported: Passenger car, light truck, SUV, off-road
Display technology: Digital LED display
User interface: Touch panel integrated weight tray
Measuring speed: <100 RPM
Balancing accuracy: 0.035 oz / 1g
Angular resolution: ±0.35deg.
Start/stop time - check spin: 6 seconds.
Wheel clamping: Quick nut

Manual Data Entry
Rim diameter range: 8-32in
Offset range: 1-20in
Rim width range: 1-20in

Semi-automatic Data Entry (sape)
Data entry - diameter and offset: Semi-automatic, gauge arm
Data entry - wheel width: Manual
Rim diameter range: 8-25in
Rim width range: 1-20in
SAPE working range: 1.3-10.9in / 33-278mm

Software Features
Cycle start: Automatic after closing wheel guard
Balancing program selection: Manual
Spoke position detection: Manual
Multiple user capability: No
Stop in position: No
Rim lighting: No
Split weight: Yes
Minimization: Yes
Optimization: Yes
Job counter: Yes
Network: No

Maximum Wheel Dimensions
Max. wheel diameter: 37.8in / 960mm
Wheel width range: 3-20in / 76-508mm
Max. wheel weight: 154 lbs / 70 kg

Additional Specifications
Diameter of shaft: 40mm
Length of shaft: 8.85in / 225mm
Main shaft lock: Mechanical
Wheel braking after measurement: Automatic
Power requirement: 230 VAC - 1Ph - 50/60Hz -5A
Power requirement (EEWB761A): 115 VAC - 1Ph - 50/60Hz - 5A
Machine dimensions L x W x H (wheel guard open):
- 43in x 40in x 67in (1100mm x 1005mm x 1711mm)
Machine net weight: 154 lbs / 70 kg

Ref No.:
7100M / EEWB761A230 (Motorcycle Model)
7100 / EEWB761AE1 (Car/LT Model)

Application:

Car
Light Truck

Includes:

Quicknut
