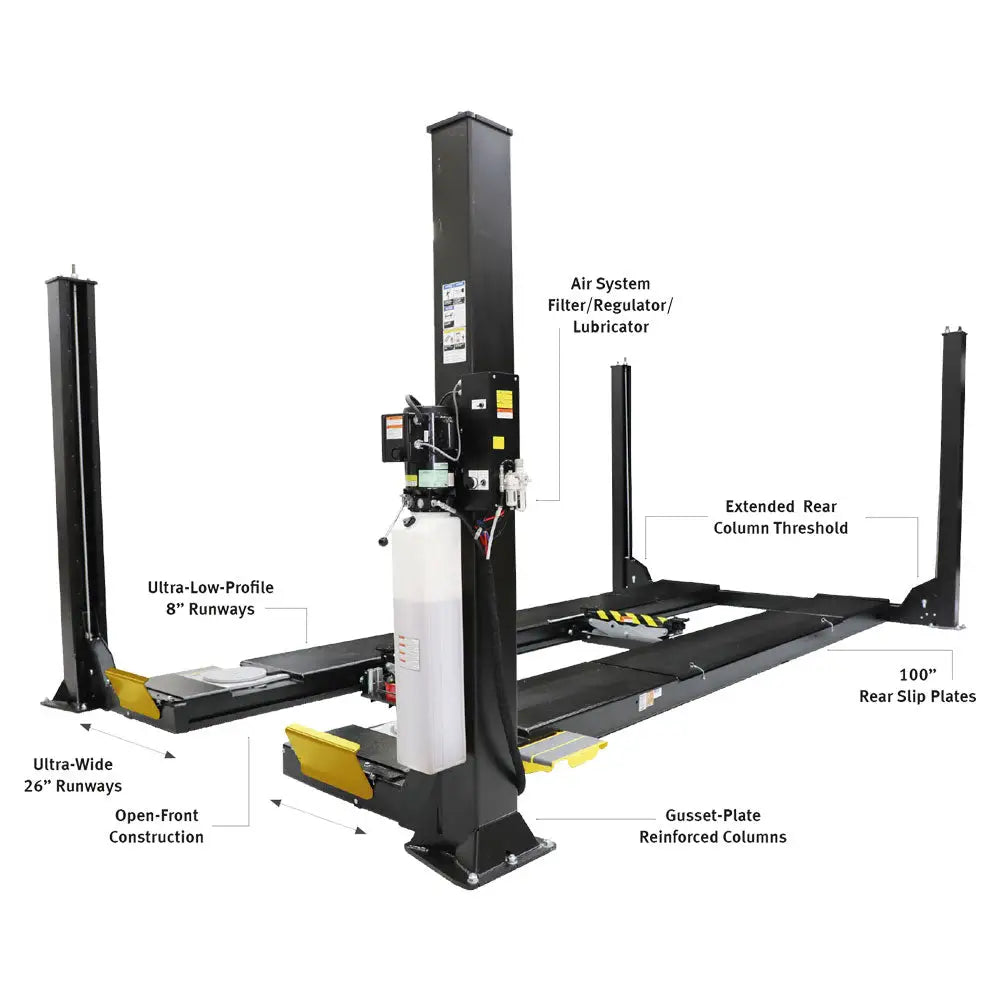

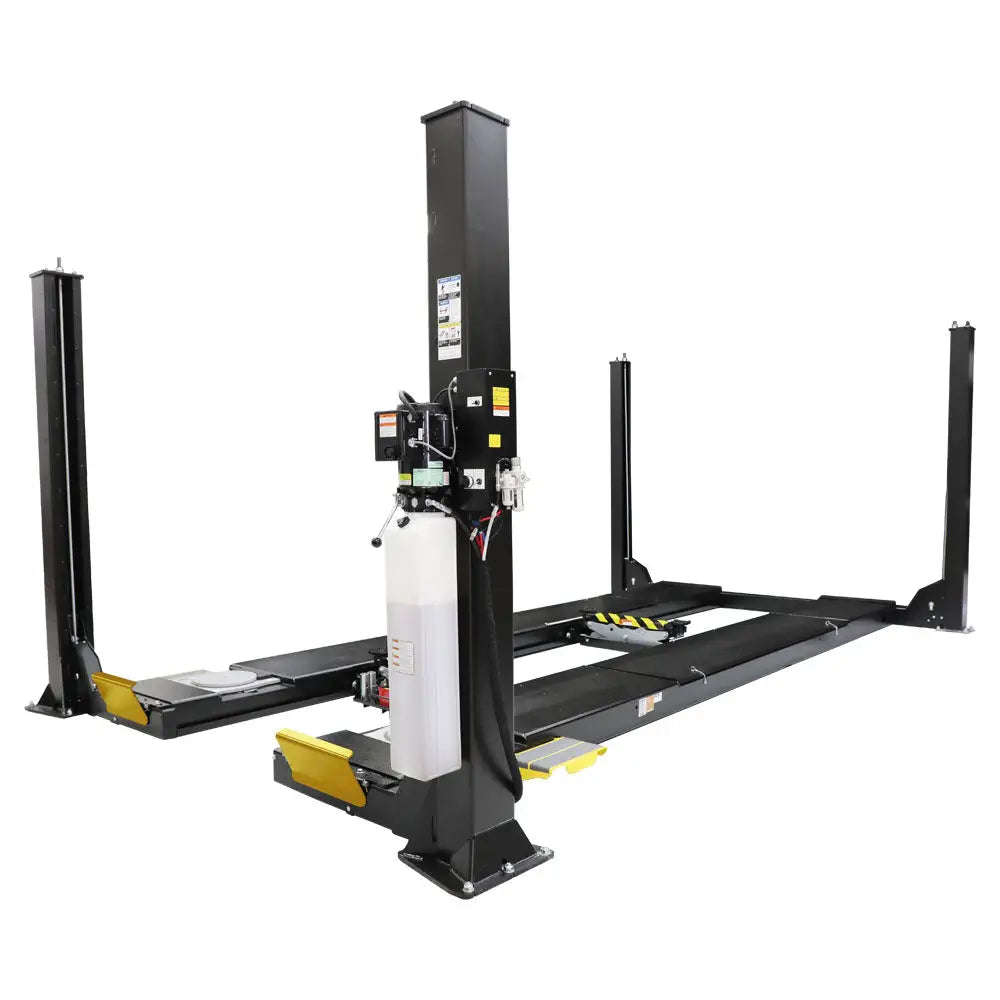

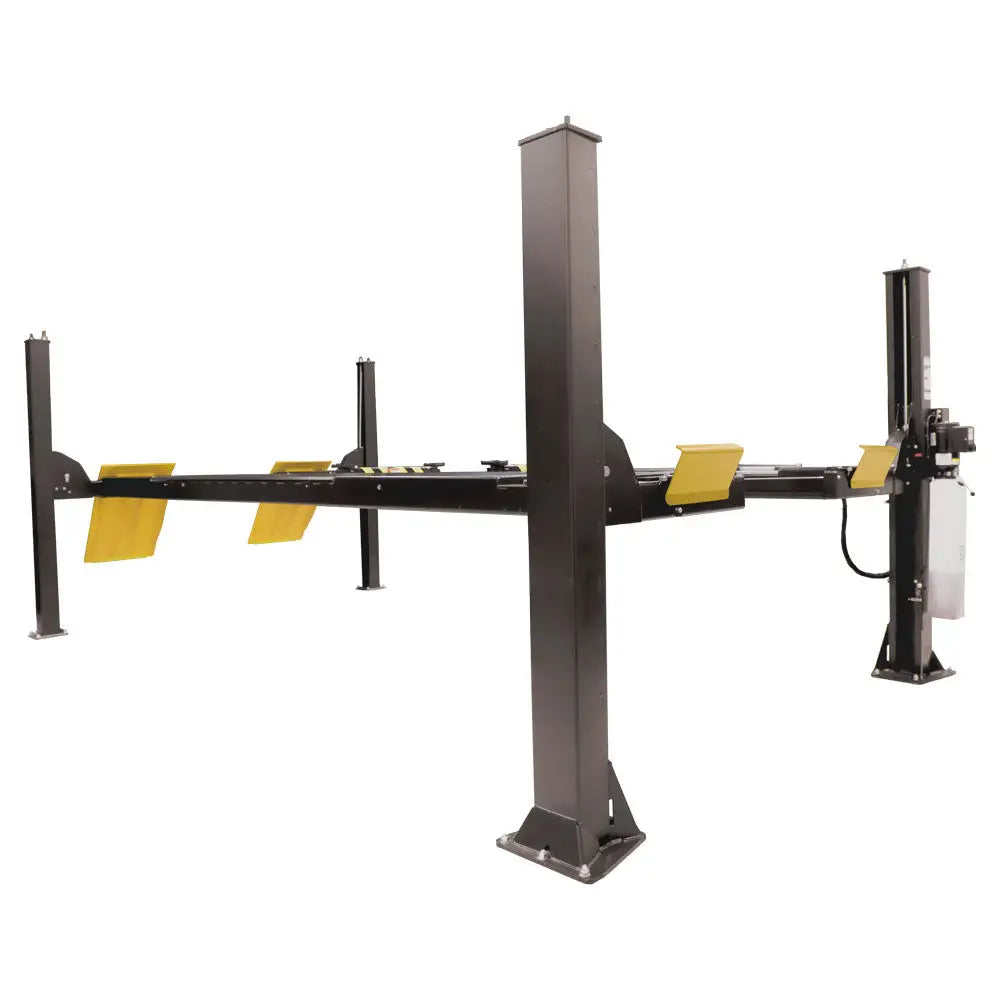

Accommodating, accessible, and equipped - the Hofmann15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.

Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways and extended 100in rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.

Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.

Features:

ALI Certified
Expanded clearance and extended runways

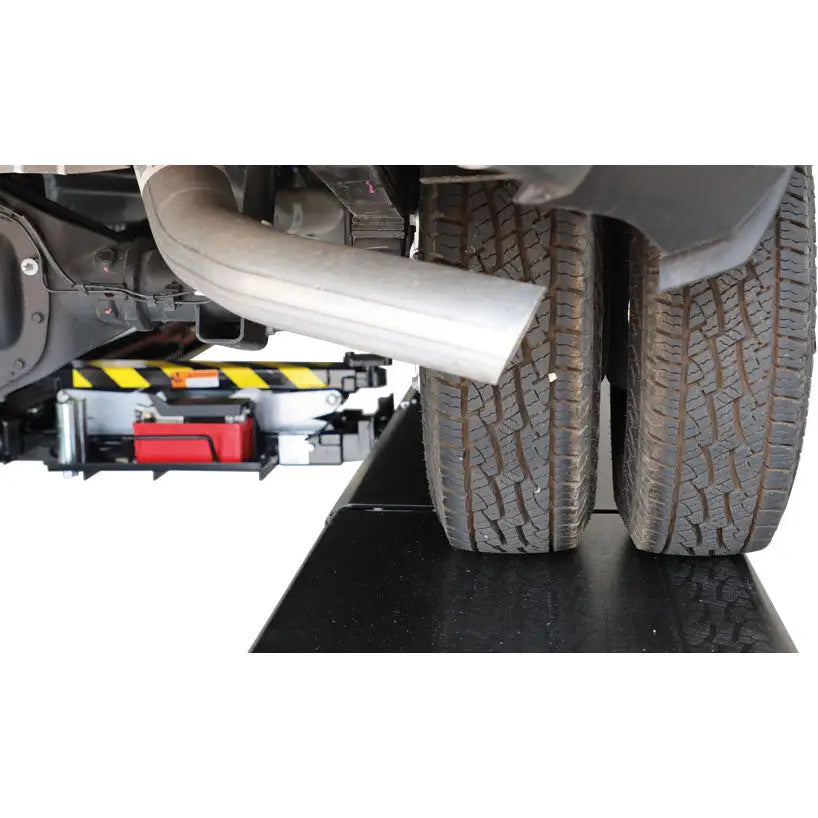

120in drive-on clearance / 125in body clearance allows dual-wheel trucks to drive on without interference
Best-in-class, ultra-wide, 26in runways accommodate wide-track vehicles

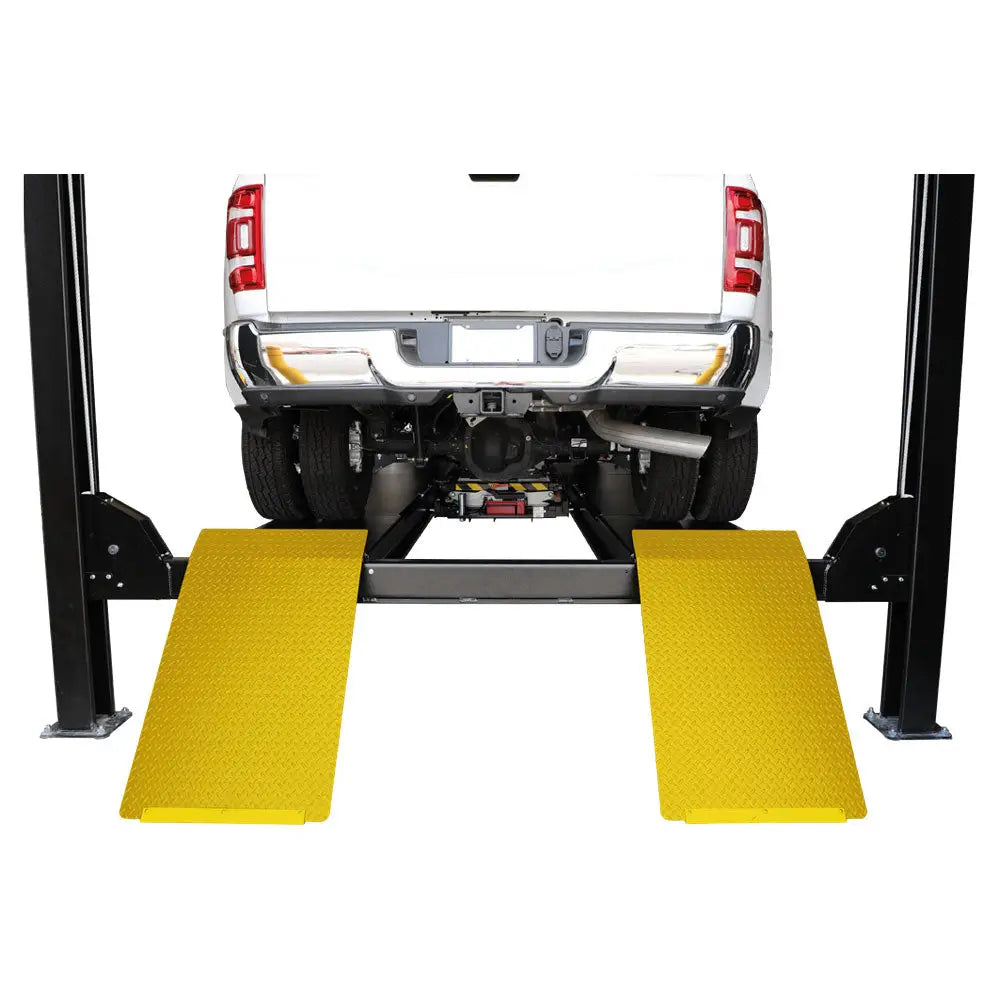

Ultra-low-profile, 8in runways allow "easy-on" approach angle for low-profile vehicles
Extra-long 100in rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles

Easy access, open-front design

Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
Micro-adjustment leveling on front and rear cross beam

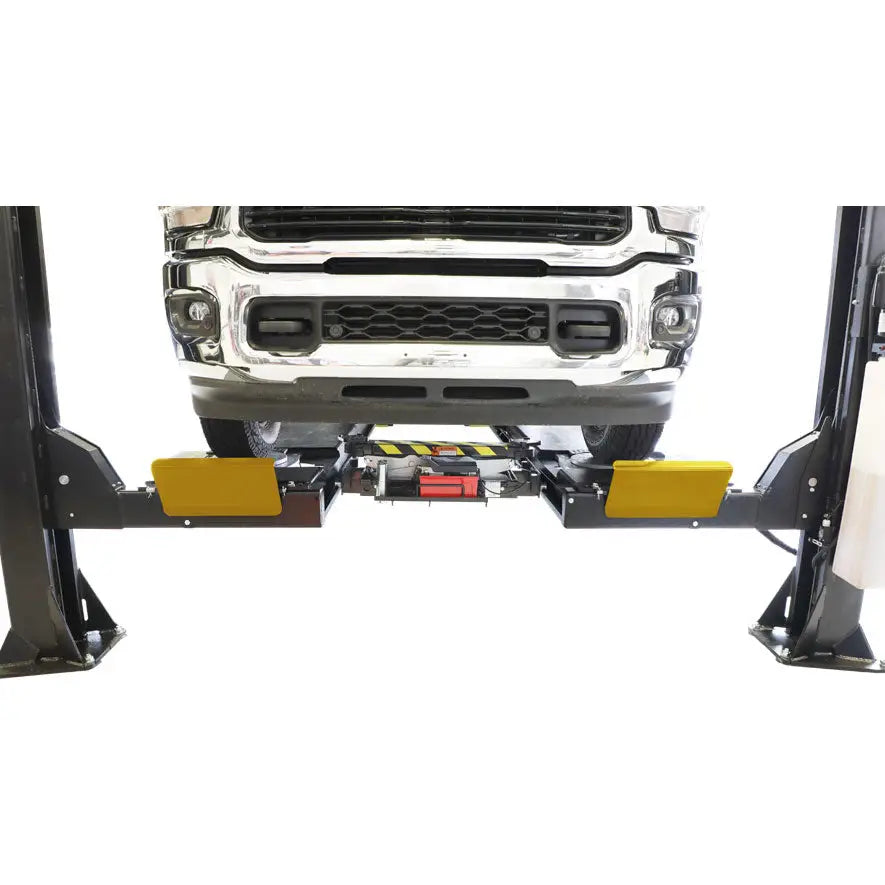

Adjustable, folding 4in front-wheel stops have clearance for long, low-profile vehicles

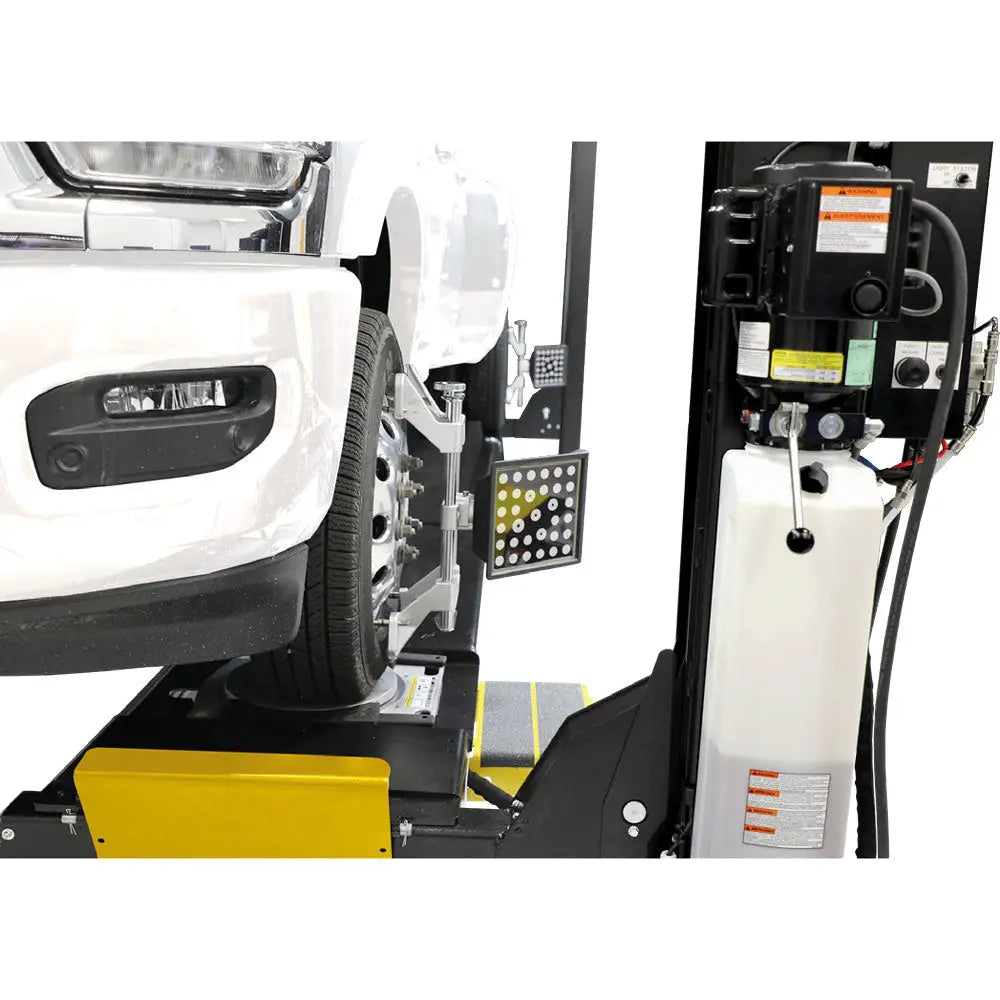

Imaging alignment compatible - easily accommodate split-roll during alignment using AC200 or AC400 clamps

Specs:

Lifting Capacity: 15,000 lbs. (6804kg)
4-Wheel Alignment: 68in-158in (1727-4013mm)
Overall Width: 142in (3607mm)
Runway Width: 26in (660mm)
Runway Min. Height: 8in (178mm)
Max Lifting Height: 78in (1981mm)
Lifting Time: 85 Seconds
Shipping Weight: 4550 lbs. (2484kg)
Power Requirements**: 3HP 208-230V
Max Operating Pressure: 2190 PSI (151 BAR)
Air Supply Requirements: 90-120 PSI (6-8 BAR)

EELR706APKG
Model: Standard
Max Wheelbase*: 183in (4648mm)
Max 2-Wheel Alignment: 167.75in (4261mm)
Overall Length: 250.75in (6370mm)
Min. Recommended Bay Size: 14ft x 24ft

EELR708APKG
Model: Extended
Max Wheelbase*: 210.5in (5347mm)
Max 2-Wheel Alignment: 195.25in (4959mm)
Overall Length: 277in (7036mm)
Min. Recommended Bay Size: 14ft x 26ft

Roller Jack
Part Number: EELR545A
Max Capacity: 7500 lbs. (3402kg)
Min. Arm Reach: 33in (838mm)
Max Arm Reach: 50.18in (1274mm)
Min. Lowered Height (above deck surface): 2.38in (60mm)
Max Raised Height (above deck surface): 12.25in (323mm)
Air Supply Requirements: 90-120 PSI (6-8 BAR)
Shipping Weight: 310 lbs. (141kg)

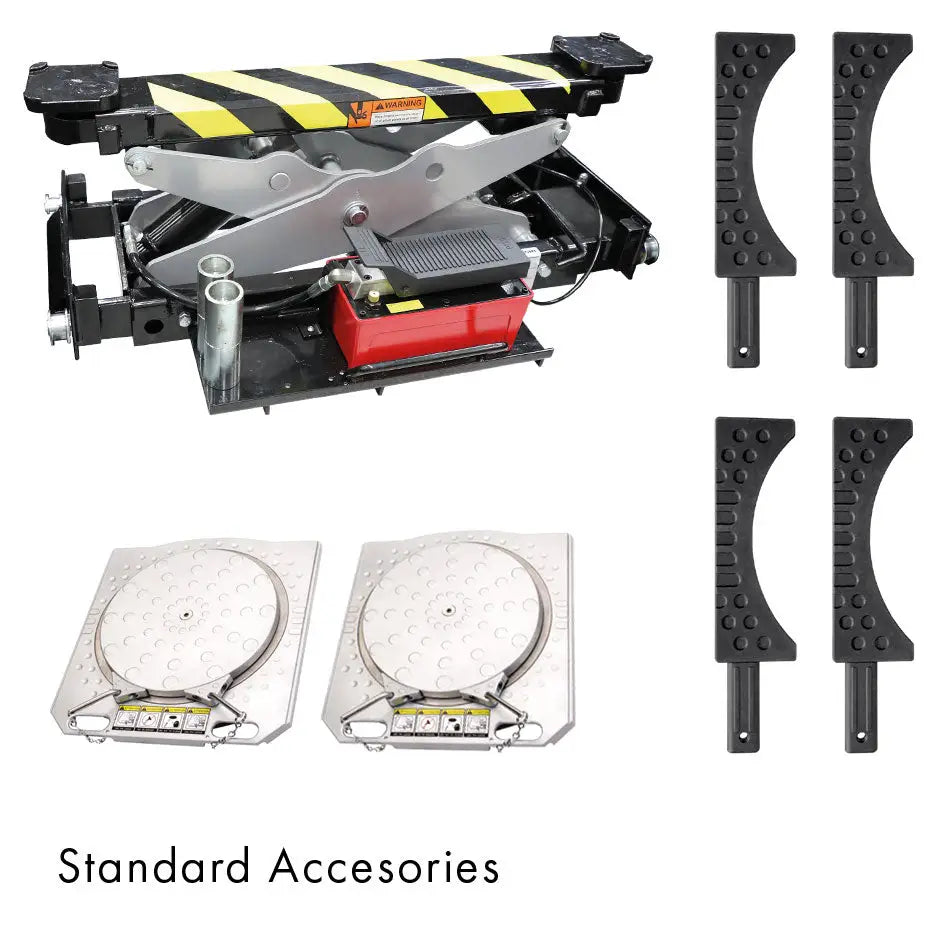

Includes:

2 x Adjustable Roller Jack; 7.5k Rolling Jack Beam; 3" stack pads (4 per jack)
2 x Premium Turn Plate; Front Radius Turntables 18.5in x 19.7in x 2in
1 x Paddle Kit for Premium Turnplates (4)
