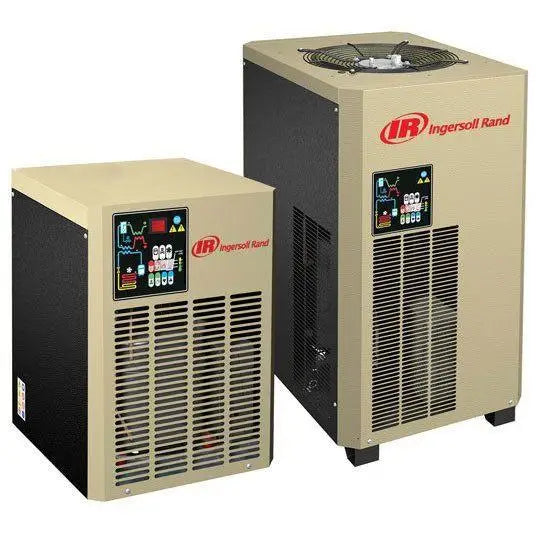

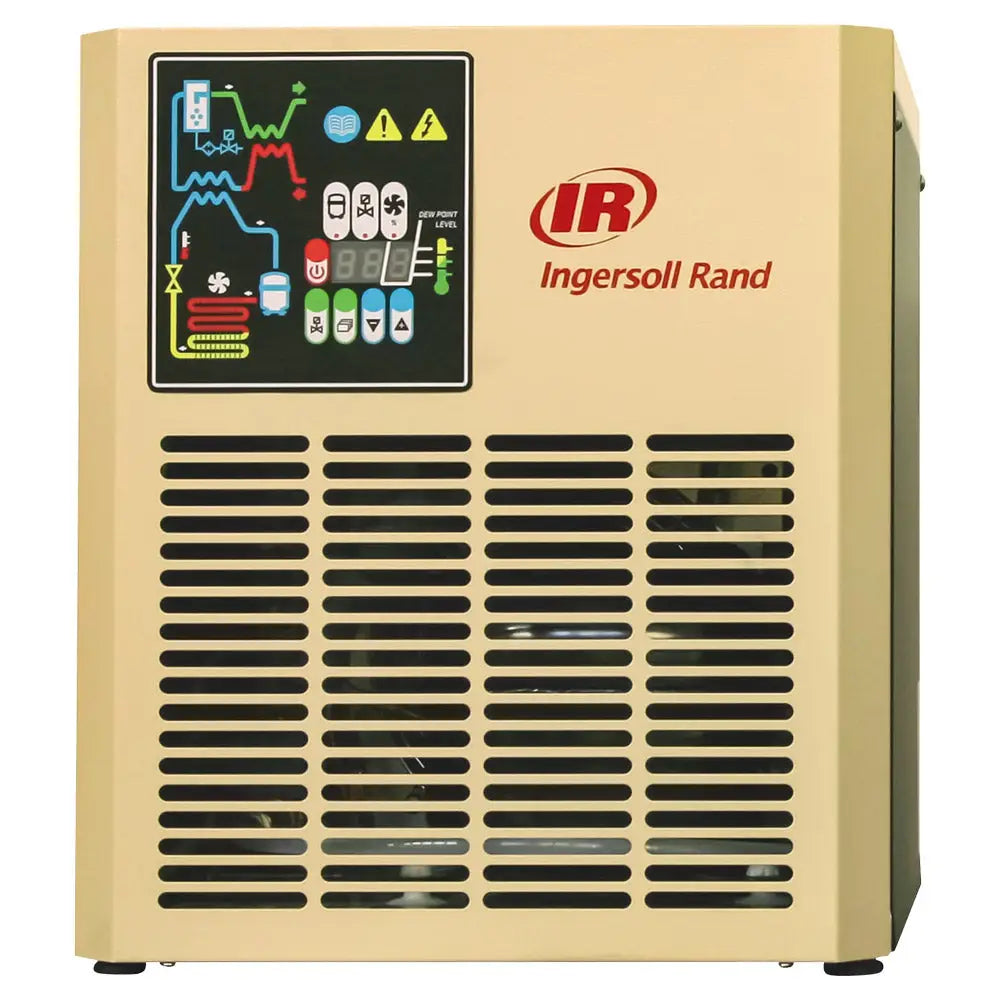

Industrial Refrigerated Air Dryer - Non-Cycling, 60Hz for Compressed Air Systems | Ideal for Workshops, Manufacturing & Automotive Applications

Industrial Refrigerated Air Dryer - Non-Cycling, 60Hz for Compressed Air Systems | Ideal for Workshops, Manufacturing & Automotive Applications

$602.25 $1095 -45%

Free shipping on all orders over $50

7-15 days international

21 people viewing this product right now!

30-day free returns

Secure checkout

18705399

Guranteed safe checkout

Non-cycling refrigerated dryers deliver reliability with virtually no maintenance. Each dryer features a refrigeration system and heat exchanger that combines cool compressed air as it passes through it. These dryers integrate a unique combination of components and features that ensure maximum productivity and the most extended service life at an affordable cost.

Features:

Reduced Energy Use: Efficient heat exchangers, a built-in stainless steel demister that removes all moisture, and a fully adjustable programmable electronic drain valve minimize energy use and reduce air loss
Built-in Reliability: Corrosion-resistant heat exchangers, an enhanced control system and high-efficiency moisture separation ensure a steady long-term supply of dry air
Smart Control: Easy to use, advanced microprocessor control that lets you easily adjust and manage system parameters
Equipment Protection: Built-in coalescing filter stops contamination by separating water and oil from the compressed air
Consistent Clean, Dry Air: Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a constant dew point

IR-D12IN
Capacity M3/HR (SCFM): 12 (7)
Operating Power Kw: 0.16
Length x Width x Height Mm (in): 390 (16.0) x 305 (12.0) x 408 (16.0)
Weight Kg (lb): 18 (40)
Connection Air In/out: 3/8in NPT

IR-D18IN
Capacity M3/HR (SCFM): 18 (11)
Operating Power Kw: 0.16
Length x Width x Height Mm (in): 390 (16.0) x 305 (12.0) x 408 (16.0)
Weight Kg (lb): 18 (40)
Connection Air In/out: 3/8in NPT

IR-D25IN
Capacity M3/HR (SCFM): 25 (15)
Operating Power Kw: 0.16
Length x Width x Height Mm (in): 390 (16.0) x 305 (12.0) x 408 (16.0)
Weight Kg (lb): 18 (40)
Connection Air In/out: 3/8in NPT

IR-D42IN
Capacity M3/HR (SCFM): 42 (25)
Operating Power Kw: 0.21
Length x Width x Height Mm (in): 452 (18.0) x 390 (16.0) x 453 (18.0)
Weight Kg (lb): 27 (60)
Connection Air In/out: 1/2in NPT

IR-D54IN
Capacity M3/HR (SCFM): 54 (32)
Operating Power Kw: 0.37
Length x Width x Height Mm (in): 452 (18.0) x 390 (16.0) x 453 (18.0)
Weight Kg (lb): 28 (62)
Connection Air In/out: 1/2in NPT

IR-D72IN
Capacity M3/HR (SCFM): 72 (42)
Operating Power Kw: 0.37
Length x Width x Height Mm (in): 452 (18.0) x 390 (16.0) x 453 (18.0)
Weight Kg (lb): 28 (62)
Connection Air In/out: 1/2in NPT

D108IN
Capacity M3/HR (SCFM): 108 (64)
Operating Power Kw: 0.48
Length x Width x Height Mm (in): 541 (21.5) x 420 (16.5) x 563 (22.5)
Weight Kg (lb): 35 (77)
Connection Air In/out: 3/4in NPT

IR-DA127IN
Capacity M3/HR (SCFM): 127 (75)
Operating Power Kw: 0.66
Length x Width x Height Mm (in): 500 (19.7) x 386 (15.2) x 617 (24.3)
Weight Kg (lb): 43 (94)
Connection Air In/out: 3/4in NPT

IR-DA170IN
Capacity M3/HR (SCFM): 170 (100)
Operating Power Kw: 0.85
Length x Width x Height Mm (in): 500 (19.7) x 386 (15.2) x 617 (24.3)
Weight Kg (lb): 45 (99)
Connection Air In/out: 3/4in NPT

IR-DA255IN
Capacity M3/HR (SCFM): 255 (150)
Operating Power Kw: 0.88
Length x Width x Height Mm (in): 770 (30.3) x 500 (19.7) x 953 (37.5)
Weight Kg (lb): 70 (154)
Connection Air In/out: 1-1/2in NPT

IR-DA340IN
Capacity M3/HR (SCFM): 340 (200)
Operating Power Kw: 1.12
Length x Width x Height Mm (in): 770 (30.3) x 500 (19.7) x 953 (37.5)
Weight Kg (lb): 77 (170)
Connection Air In/out: 1-1/2in NPT
